This blog draws on industry insights and technical best practices to guide you in improving multiconductor cable design and manufacturing.
What we cover in this blog?

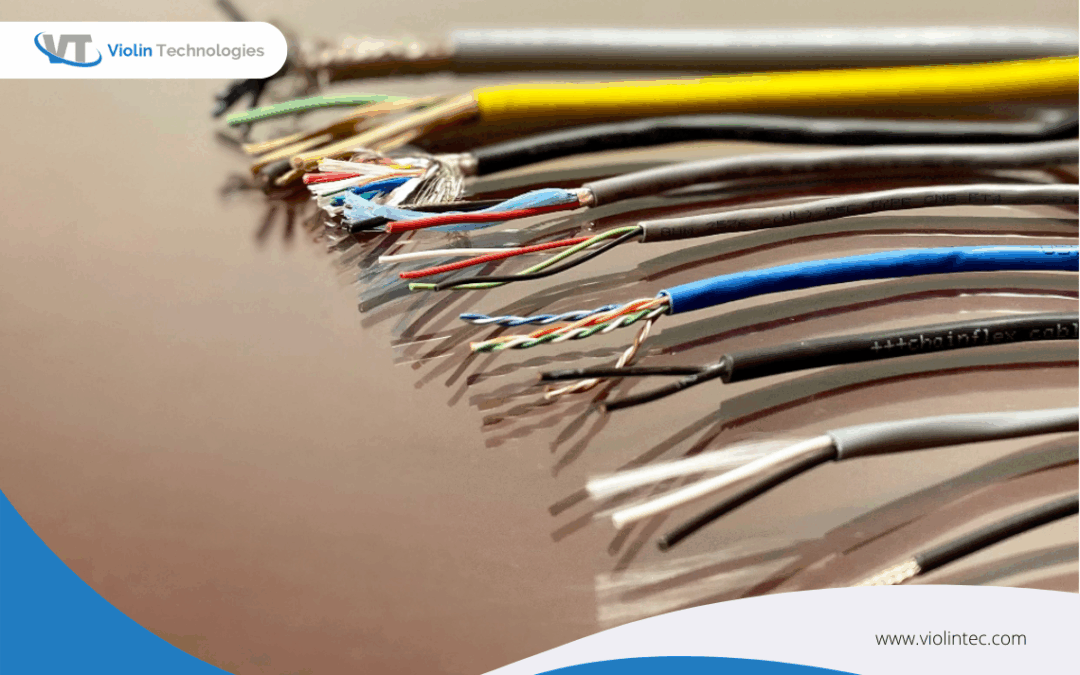

Understanding Multiconductor Cables
Multiconductor cables consist of multiple insulated conductors wrapped within an outer protective jacket. Their designs vary widely depending on the application, with options including twisted or parallel conductor arrangements, foil and braid shielding, and a range of insulation materials.

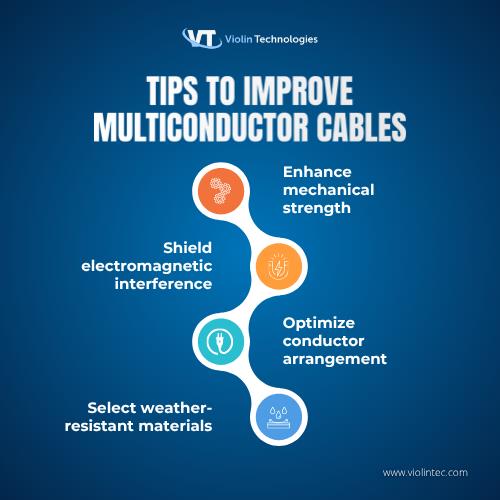

Tips to Improve Multiconductor Cables
Despite their versatility, multiconductor cables face challenges like mechanical stress, electromagnetic interference (EMI), signal attenuation, and harsh environmental conditions. These can degrade cable life or cause intermittent failures.
1. Mechanical Strength Enhancement
Mechanical robustness is vital, especially when cables are exposed to bending, twisting, vibration, or pulling forces during installation and operation.
Tips for Improving Strength:
- Select conductor materials with high tensile and fatigue resistance, such as tinned copper or copper alloys.
- Utilize proper conductor strand diameters; finely stranded wires offer flexibility but may sacrifice tensile strength, so balance accordingly.
- Reinforce cable jackets with materials such as polyurethane or thermoplastic elastomer (TPE), which offer abrasion resistance and flexibility.
- Incorporate aramid yarn or fiberglass braided strength members under the jacket to improve tensile strength without bulk.
By reinforcing both conductors and cable jackets, manufacturers like Custom Cable Manufacturers in India efficiently meet demanding mechanical requirements.
2. Superior Electromagnetic Shielding
EMI can distort or degrade the signals carried by cable conductors, affecting device performance.
Shielding Strategies:
- Use a combination of foil and braided copper shields to maximize coverage and reduce both radiated and conducted interference.
- Ensure tight shielding; braids should achieve at least 85% coverage for effective EMI protection.
- Consider double shielding for high-frequency or critical signal cables.
- Maintain proper grounding and termination to ensure the shields function correctly.
Top-tier Cable Assemblies in the USA follow strict shielding standards to achieve optimal signal integrity.
3. Optimized Conductor Arrangement
Conductor placement within multiconductor cables impacts both electrical performance and flexibility.
Design Tips:
- Twist pairs of conductors to reduce crosstalk and electromagnetic interference.
- Use calculated lay lengths (twist rates) based on signal frequency and application..
- Avoid tight bends and sharp conductor turns during cable routing to prevent conductor damage.
- Design data cables for consistent impedance to reduce signal reflections.
Such engineering choices contribute to longer cable lifetimes and better performance.
4. Material Selection for Harsh Environments
Cables operating outdoors or in industrial settings are exposed to moisture, chemicals, UV radiation, and temperature extremes.
Recommended Materials:
- Use jackets resistant to oils, solvents, weathering, and temperature fluctuations—for instance, PVC, polyurethane, or fluoropolymer.
- Choose insulation materials with excellent dielectric properties and mechanical durability, such as cross-linked polyethylene (XLPE) or fluorinated ethylene propylene (FEP).
- For underwater or wet environments, consider water-blocking tapes and gel fills to prevent moisture ingress.
Custom Cable Manufacturers design products tailored to specific environments while complying with regulatory and safety standards.
5. Testing and Quality Assurance
Thorough testing—electrical, mechanical, and environmental—is essential to validate cable integrity.
Common tests include:
- High-voltage withstand (dielectric strength)
- Continuity and resistance checks
- Avoid tight bends and sharp conductor turns during cable routing to prevent conductor damage.
- EMI susceptibility and emission tests
- Chemical and abrasion resistance evaluations
Reliability through rigorous testing distinguishes the best Quality Contract Manufacturing Partners in the USA.
Final Thoughts
Enhancing the strength and performance of multiconductor cables requires a blend of smart materials science, mechanical reinforcement, electromagnetic design, and stringent quality control.
Custom Cable Manufacturers in India and experienced manufacturers worldwide focus on these parameters to deliver cables that stand the test of time and application demands.
When seeking custom cables for mission-critical applications, prioritize partners offering engineering expertise and comprehensive testing aligned with your operational needs.
