This blog will cite the advantages, downsides, and typical uses of the three most popular surface finishes: ENIG (Electroless Nickel Immersion Gold), HASL (Hot Air Solder Leveling), and OSP (Organic Solderability Preservative). Understanding the differences between ENIG, HASL, and OSP finishes is critical for the success of any project, whether you are an engineer or a product designer.
Why PCB Surface Finishes Are Important
Printed circuit boards’ quality, functionality, and longevity depend on their surface treatment. These finishes are applied to a PCB’s exposed copper to prepare it for assembly and protect it during its existence. Surface treatments serve three primary objectives in PCB manufacturing:
Protection
Copper, an important material in PCB manufacture, is very susceptible to oxidation when exposed to the environment. Oxidation can degrade solderability and reduce the board’s ability to make electrical connections. Surface coatings act as a barrier, preventing copper from oxidizing and ensuring the PCB’s integrity while it is handled, stored, and used.
Solderability
Soldering is an important step in PCB construction since it includes attaching components to the board. A reliable surface polish ensures a consistent and strong adhesion between the components and the PCB while soldering. Inadequate finishing can lead to soldering faults, such as cold joints or inadequate wetting, causing the assembled product to fail.
Performance
The choice of PCB surface finish also influences its electrical and thermal performance. The finished material affects heat dissipation, durability, and contact resistance. If the appropriate surface treatment is selected, the PCB will perform reliably under specific operating conditions, such as high-frequency applications or extremely high temperatures.
Enhance your PCB’s performance and reliability by consulting with experienced electromechanical assembly and box-build manufacturers who specialize in integrated solutions. Their expertise in system-level integration, including PCB assembly, cable management, and enclosure design, ensures optimal functionality and durability of your electronic products.
Common Surface Finishes: ENIG, HASL, and OSP.
Each surface finish has unique qualities that affect the assembly process, overall performance, and lifespan of the PCB. Below is a thorough look at three commonly used finishes:
1. Electroless Nickel Immersion Gold (ENIG)
ENIG is a two-layer metallic coating consisting of a nickel layer and a thin layer of gold. The nickel forms a barrier to the copper, and the gold shields the nickel from oxidation.
Benefits
- Excellent flatness, making it suitable for fine-pitch components and surface-mount technology (SMT).
- It has a long shelf life since it is highly resistant to oxidation.
- Ideal for high-frequency, high-reliability applications.
- It is an excellent choice for complicated PCBs, particularly those used in industries that require great performance and reliability, such as aerospace and telecommunications.
Considerations
- Higher cost than other finishes.
- If not applied properly, a failure scenario known as a “black pad” may occur.
The top PCB manufacturers in India frequently recommends ENIG for high-end projects.
2. Hot Air Solder Leveling (HASL)
It is one of the most popular surface finishes in the PCB industry. It involves dipping the PCB into molten solder and leveling the surface with hot air to remove any excess solder. It is available in both lead-based and lead-free forms.
Benefits
- Low cost and widespread availability.
- Good solderability ensures dependable component attachment.
- Durable finish that can resist several reflows during assembly.
Considerations
- Fine-pitch components may struggle on uneven surfaces.
- The uneven thickness makes it unsuitable for high-frequency applications.
3. Organic Solderability Preservative (OSP)
OSP coating is a basic but effective finish for PCBs. It enables good solderability without the use of metals such as lead because it protects the copper surface with a water-based organic component and preserves copper by creating a thin, temporary coating.
Benefits
- Eco-friendly and lead-free.
- Lower cost than metal-based coatings like ENIG or HASL.
- Cost-effective for simple and low-complexity printed circuit boards.
- Offers great solderability in a single PCB assembly process.
Considerations
- It has a limited shelf life and degrades quickly when exposed to air or moisture.
- The OSP coating can be broken down by multiple heat cycles, making it unsuitable for multi-reflow procedures.
Choosing the Ideal Surface Finish for Your PCB
The choice of surface finish depends on the following factors:
Complexity of Design: ENIG is apt for complicated designs that include fine-pitch components.
Budget: HASL and OSP are less expensive for general-purpose PCBs.
Environmental Compliance: OSP and lead-free HASL are preferable for environment-friendly applications.
Performance: High-performance applications frequently demand ENIG due to its endurance and reliability.
Check out PCB assembly services in India for expert advice on improving your PCB’s reliability and efficiency.

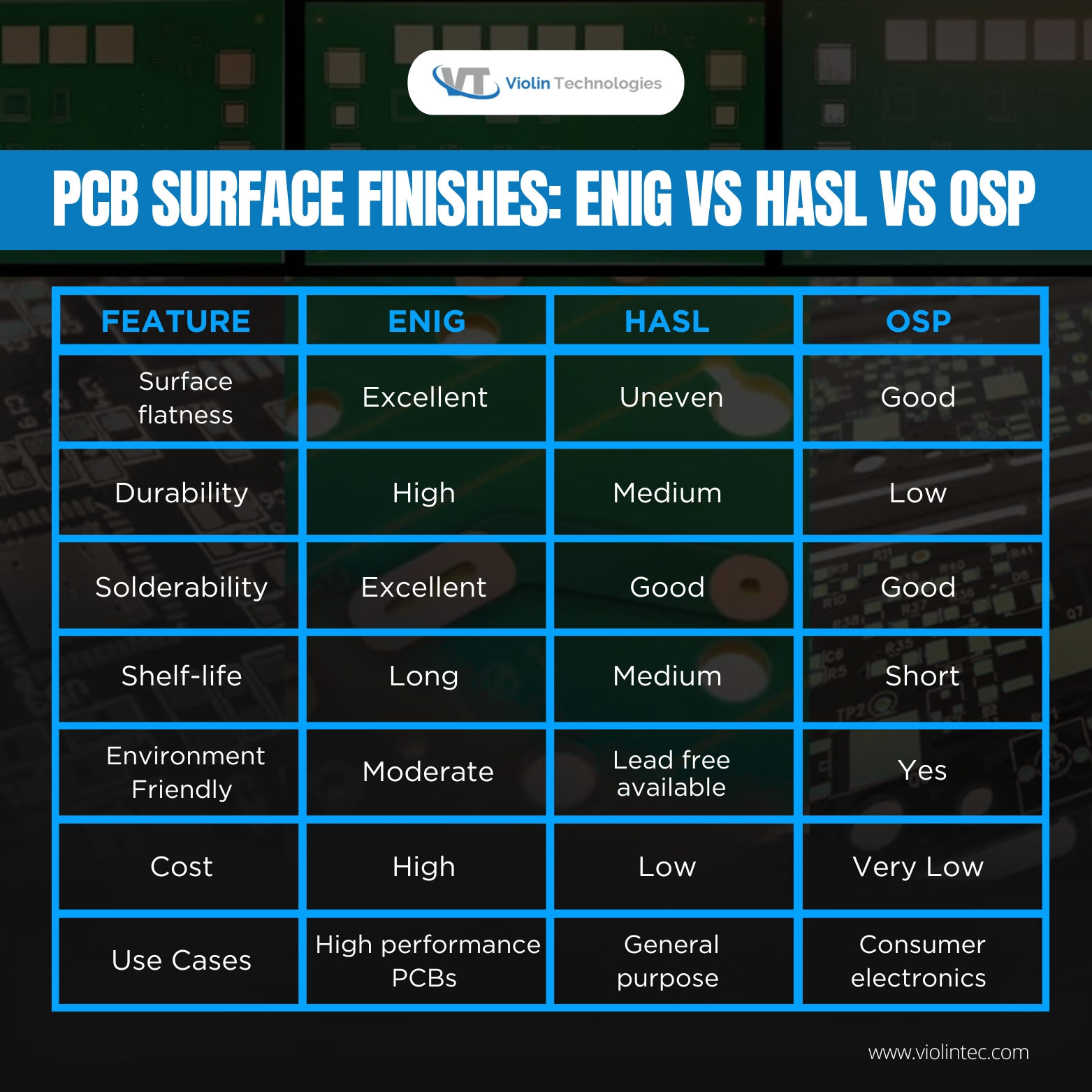

ENIG Vs. HASL Vs. OSP
| Feature | ENIG | HASL | OSP |
|---|---|---|---|
| Surface flatness | Excellent | Uneven | Good |
| Solderability | Excellent | Good | Good |
| Durability | High | Medium | Low |
| Shelf-life | Long | Medium | Short |
| Environment-Friendly | Moderate | Lead-free available | Yes |
| Cost | High | Low | Very Low |
| Use Cases | High-performance PCBs | General Purpose | Consumer electronics |
Conclusion
Choosing the correct surface treatment for a PCB is a strategic decision that affects the lifecycle of an electrical product. ENIG, HASL, and OSP each have unique advantages and disadvantages, necessitating careful evaluation of cost, performance, and environmental impacts. Businesses can improve their production process by recognizing these characteristics and partnering with expert manufacturers and assembly service providers.
FAQs
Q1. What are the main differences between ENIG, HASL, and OSP surface finishes?
A. ENIG provides exceptional surface flatness and durability, making it perfect for fine-pitch components. HASL is cost-effective but has irregular surfaces, making it suited for general-purpose PCBs. OSP is eco-friendly and inexpensive, but it has a shorter shelf life and is less robust.
Q2. Which surface finish is most suitable for high-density or fine-pitch PCB designs?
A. ENIG is preferred for high-density or fine-pitch PCB designs due to its superior surface planarity and reliable solderability.
Q3. How do cost considerations influence the choice between ENIG, HASL, and OSP?
A. HASL is the most cost-effective option; OSP is slightly more expensive but environmentally friendly, while ENIG is the most expensive due to its complex process and materials, but it offers superior performance.
Q4. What are the environmental impacts of these surface finishes?
A. OSP and lead-free HASL are environmentally friendly and comply with industrial standards, and ENIG, while lead-free, involves the use of nickel and gold, which have environmental considerations.
