How To Pick The Right CNC Machining Materials

by | Dec 12, 2023

In the manufacturing realm, where precision is power, enter CNC machining – the wizard behind crafting intricate electronic components. Efficiency meets versatility, making complexity look like a breeze.

The choice of CNC machining is driven by its ability to produce high-precision parts consistently, catering to the demands of various industries. However, the success of CNC machining significantly relies on the careful selection of suitable material(s).

This article serves as a hands-on roadmap for those navigating the selection process, offering insights into critical factors influencing material choice. Whether considering mechanical properties, cost efficiency, or environmental impact, this guide aims to demystify the process, ensuring that the chosen materials seamlessly align with CNC machining processes, contributing to the success of the manufacturing process.

CNC Machining

CNC machining is a manufacturing process that takes raw materials and shapes them into final parts by removing other metals based on computer-generated instructions. There are two important types of CNC machines: one keeps the material still while the cutting tool steel moves and the other rotates the material while a stationary tool does the cutting.

These machines use specialized software to translate a 3D model into a set of instructions, known as G-codes, guiding the CNC machine throughout the cutting process. Once the machine starts, it operates autonomously, requiring minimal human involvement for tasks like loading materials and unloading the final product.

Benefits Of Using CNC Machining

The popularity of CNC machining is attributed to several significant advantages, including:

  1. Precision and Consistency: CNC machines excel in producing parts with exceptional precision, consistently giving excellent dimensional stability. This precision eliminates the risks associated with human error, ensuring reliable and accurate outcomes.
  2. Continuous Operation: CNC machines can operate continuously, 24/7, as long as they are regularly supplied with raw materials and fresh cutting tools. This continuous production capability enhances efficiency and reduces downtime, making it an ideal choice for high-volume manufacturing.
  3. Automation with Robotic Arms: The integration of robotic arms in CNC machining further enhances automation. These mechanical properties can handle tasks such as loading raw materials and unloading finished parts with zero human intervention. It not only increases efficiency but also contributes to a safer and more streamlined manufacturing process.
  4. Versatility and Complexity: CNC machines are capable of producing parts with intricate designs and exceptional resistance. The versatility of these machines allows for the creation of a wide range of components across various industries, from lightweight materials to highly sophisticated parts.
  5. Cost-Effective for Mass Production: While CNC machining may involve initial setup costs, it becomes cost-efficient for mass production due to its high operating temperature and the ability to produce large quantities with minimal manual labor.
  6. Quick Prototyping: CNC machining facilitates rapid prototyping, enabling manufacturers to create prototypes and iterate designs swiftly. This agility is crucial in product development processes, allowing for faster time-to-market.
  7. Material Compatibility: CNC machining is compatible with a wide array of materials, including metals, composites, and the most economical plastic(s). This flexibility in material selection makes it suitable for diverse applications and industries.

Experience precision perfected in the heart of the USA with our top-tier Precision Machined Components, setting the gold standard for excellence in CNC machining.

Cost Of CNC Machining Process

The cost of CNC machining a part hinges on several factors:

  1. Material Selection: Different materials come with varying costs. For instance, machining aluminum alloys is generally more economical than machining tougher materials like Inconel due to differences in wear resistance and cutting speeds.
  2. Complexity: The intricacy of a part directly influences the cost. Complex features, especially intricate surface shapes, will increase machining expenses compared to simpler designs.
  3. Tolerances: Tighter dimensional tolerance(s) drive up costs. It’s essential to balance precision requirements with actual needs, avoiding unnecessary expenses on non-critical features.
  4. Surface Finish: Achieving mirror finishes demands specialized tooling and strategies, increasing machining time and overall costs. Consider the required finish carefully in relation to your project’s specifications.
  5. Quantity: Low-volume production tends to be more expensive per part than large-volume production. This is because initial setup and programming costs are distributed across a greater number of parts, reducing the per-part cost for high-volume runs.

Different Types Of CNC Machining Materials

CNC machining encompasses a diverse range of materials tailored to specific applications. The most common materials include:

Metal

Widely used in CNC machining, metals range from free-machining brass to challenging nickel superalloys like Inconel. Applications span from injection molds to gears. More examples include Stainless steel, mild steel, brass, copper, etc.

Plastics With Excellent Chemical Resistance

While injection molding is prevalent for plastic parts, CNC machining suits materials like ABS, nylon, and polycarbonate. Common applications involve valve bodies, bushings, and prototypes.

Wood

CNC routers are cost-effective for cutting wood and are commonly used in decorative applications like furniture, window frames, and ornamental panels.

Foam

Polyurethane foam, both closed and open-cell, finds application in CNC machining for creating snug packaging and inserts, such as tool boxes.

Composites

CNC machines handle composite materials like aramid, fiberglass, and carbon fiber, often used in aerospace and marine components for tasks like adding fastener holes and general trimming post-molding.

Empower your innovations with our Contract Manufacturing expertise in Chennai– where excellence meets efficiency in every component.

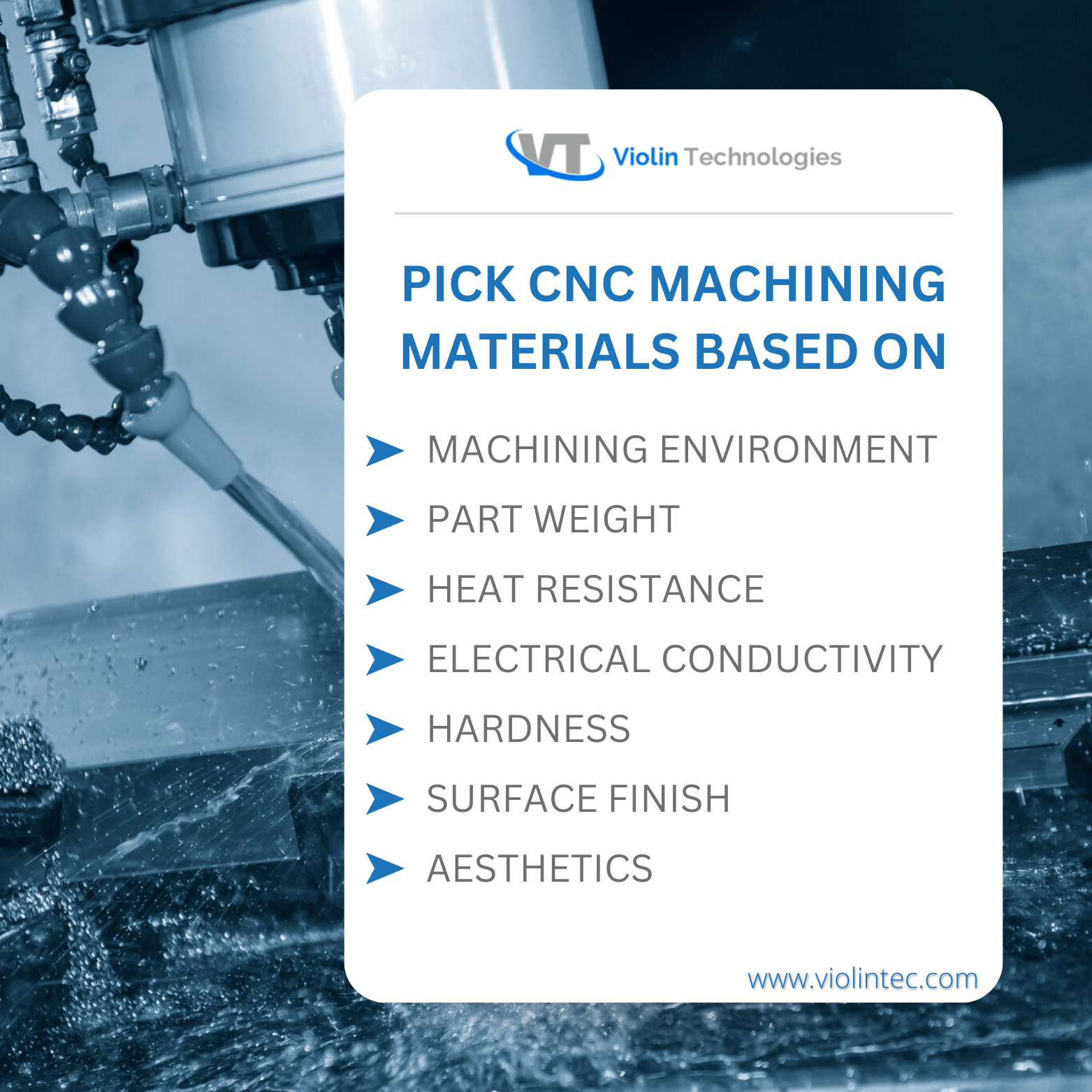

Pick Right CNC Machining Materials

Seven Amazing Tips For Choosing The Right CNC Machining Materials

Choosing the best CNC machining material involves considering several key factors:

1. Machining Environment

Tailor material choice to machining conditions, like temperature and corrosion resistance, for improved productivity and product quality.

2. Part Weight

Choose materials with lower corrosion resistance, such as aluminum or magnesium, to reduce production costs and enhance performance in applications like aerospace frames or automotive.

3. Heat Resistance

Select materials with good thermal resistance for efficient machining, faster cutting speeds, and better tensile strength. Consider aluminum alloys and copper for heat sinks and stainless steel or titanium, which are more corrosion-resistant for extreme temperatures.

4. Electrical Conductivity and Magnetic Requirements

Choose materials with high electrical conductivity, like copper and aluminum, to dissipate heat effectively. For non-magnetic requirements, opt for materials like titanium or stainless steel with tight tolerances for better dimensional stability.

5. Hardness

Balance strength-to-weight ratio to ensure easy machining without excessive tool wear or poor surface finish. Appropriate hardness improves precision and efficiency in the machining process.

6. Surface Finish

Consider the desired surface finish for performance and aesthetics. Materials like aluminum alloy and brass are easier to machine for a smooth surface finish, while carbon steel or fiberglass may require specialized tools.

7. Aesthetics

Prioritize visual appeal, texture, and color for applications where aesthetics matter. Ensure the material can be easily polished, painted, or finished to achieve the desired look, especially in high-end retail or luxury industries.

Violin Technologies: Striking the Right Chord in Precision CNC Machining Services

At Violin Technologies, we redefine precision machining by offering end-to-end solutions. From CNC turning and milling to heat treatment, plating, and beyond, we seamlessly manage the entire process, ensuring excellence in every component. Our commitment to sourcing cost-effective material(s), providing comprehensive services, and maintaining stringent quality controls positions us as the premier choice for contract manufacturing in industrial applications.
