Copper Clad Cables Vs. Solid Copper Cables: How To Choose

by | May 24, 2024

Cables may be small, but they are crucial components in any electrical application. The performance of the entire system is significantly impacted by the quality and type of cables, a factor that is often overlooked. To ensure high quality, partnering with reputable cable harness manufacturers in India is essential. However, selecting the appropriate type of cable is your responsibility.

There are two basic types of cables you can use: copper clad and solid copper cables. These cables have significant differences, and it’s crucial to understand them to maintain data integrity and ensure reliable performance. Let us learn which one is better suited for your application. Choose wisely to match your specific needs.

Key Takeaways

  • Copper clad cables offer a more affordable option compared to solid copper.
  • Solid or pure copper cable is preferred for long-distance signal transmission.
  • Copper clad cables, especially aluminum, are lightweight.
  • Steel copper clad cables excel in durability, while solid copper performs well in high-temperature conditions.

What Are Copper Clad Cables?

Copper clad cables are available as either copper clad aluminium (CCA) or copper clad steel (CCS). It means that the conductor is made either of aluminum or steel, with a coating of copper wrapped around it. So, these are not 100% copper cables.

Advantages of Copper Clad Cables: One significant advantage of copper clad cables over solid copper cables is their lightweight nature. Replacing copper conductors with aluminum or steel reduces the cable’s weight, making them ideal for lightweight applications. Additionally, copper clad cables are more cost-effective, as the inner copper is replaced with less expensive aluminum or steel.

Disadvantages: Due to the copper coating, these cables are generally better suited for short lengths or distances and transmitting smaller amounts of data. Over longer distances, signal loss will occur and require the signal to be retransmitted multiple times to reach its endpoint. While both perform similarly over short distances, steel is typically more durable, making it especially useful for outdoor applications.

What Are Solid Copper Cables?

Solid copper cables are composed entirely of copper, with both the conductor and coating made of copper. It is also the most preferred cable over copper clad aluminum. Solid copper cables are also the industry standard for all Ethernet wiring.

Advantages of Solid Copper Cables – The primary benefits of solid copper ethernet cables are their durability and flexibility. These cables can bend easily, making them simple to shape and form. Additionally, a copper conductor offers superior performance. Pure copper cables are ideal for transmitting signals over long distances with no signal integrity issues, excelling in transmitting high levels of data with minimal current needed to push the signals to their endpoint.

Disadvantages – The main drawback of solid copper ethernet cables is their heavy weight. However, their excellent performance and durability often outweigh this downside.

Cable Assemblies in Chennai manufactures high-quality cables and offers various other services.

How To Choose The Right Cable?

When deciding between copper clad and solid copper cables, several factors should be considered: cost, distance, weight, durability, and data load.

Cost: A pure copper cable tends to be more expensive than the more affordable copper clad aluminum cable or copper clad steel cable.

Distance: Copper clad cables are suitable for short-distance signal transmission without any performance issues. For longer distances, pure copper cables are preferred.

Weight: Copper clad cables, particularly those made of aluminum, are lightweight.

Durability: CCS cables offer greater durability, while solid or pure copper cables are also durable and perform well in high heat temperature conditions. CCA is less robust.

Data: Solid copper ethernet cables are ideal for transmitting high volumes of data. For smaller data loads, copper clad cables are usually sufficient, even for longer cables. It’s essential to consider the amount of data being transmitted relative to the cable length required.

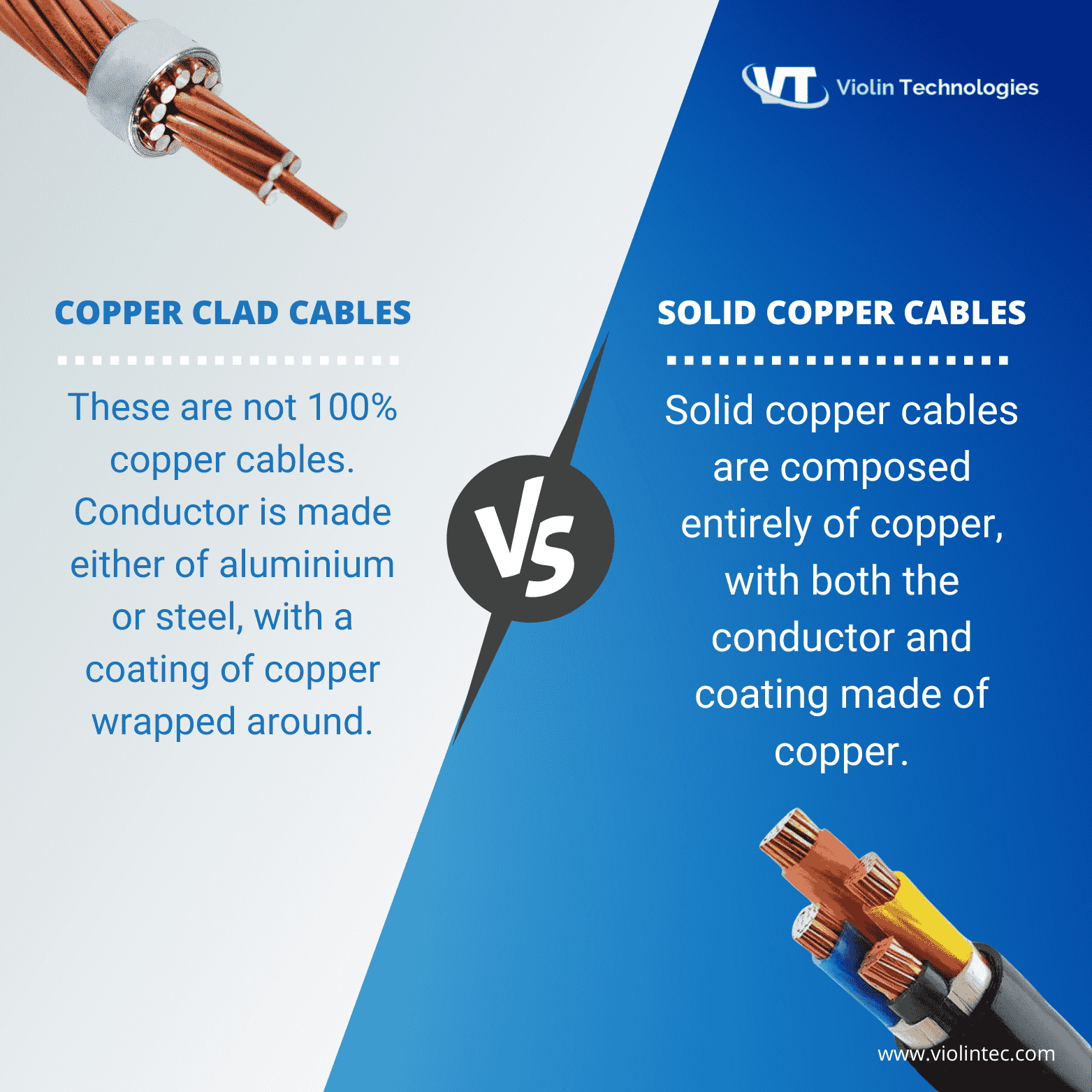

Copper clad Vs Solid Copper cables

Applications of Copper Clad Cables

Telecommunications

CCS is commonly used in coaxial cables for cable television, internet, and other broadband applications. The copper layer provides the necessary conductivity for signal transmission, while the steel core offers strength and durability, especially for aerial installations.

Copper-clad aluminum (CCA) cables are used in some ethernet and telephone applications. These cables are lighter and less expensive than solid copper, making them an ideal choice for certain installations.

Aerospace and Automotive

In the aerospace and automotive industries, reducing weight is crucial. Copper clad aluminum cables are used in these sectors to achieve weight savings without compromising on conductivity and performance. These cables are found in wiring harnesses, battery cables, and other critical electrical systems.

Electrical Distribution for Buildings

Copper-clad aluminum wires are used in electrical distribution for buildings. They offer good conductivity and are less expensive than solid copper wires, making them suitable for residential and commercial wiring where cost savings are important.

CCS is often used in grounding systems due to its strength and corrosion resistance. It provides reliable grounding for electrical systems and lightning protection.

Antenna and Radio Frequency (RF) Systems

CCS is used in antenna cables for radio, television, and communication systems. The steel core provides strength to support the antenna structure, while the copper layer ensures efficient signal transmission.

RF transmission lines often use copper-clad cables due to their combination of strength and conductivity. These cables are essential in broadcasting and communication infrastructure.

Applications of Solid Copper Cables

Commercial and Industrial Wiring

In commercial and industrial buildings, pure copper cables are preferred for permanent installations in walls, ceilings, and floors, providing stable and reliable connections.

Automotive and Transportation

In the automotive industry, pure copper cables are used in applications where flexibility is not a primary requirement. These include battery cables and other connections that benefit from the cable’s durability and conductivity.

Renewable Energy Systems

Pure copper cables are used in solar power installations to connect photovoltaic panels, inverters, and other components. Their high conductivity ensures efficient energy transfer from the panels to the power grid or storage systems.

Conclusion

Choosing between copper-clad cables and solid or pure copper cables depends on the particular requirements of the application. Pure copper cables are ideal for scenarios demanding the highest conductivity, durability, and reliability despite their higher costs and weight.

Copper-clad cables offer a more economical solution with adequate performance, particularly beneficial in applications where weight and flexibility are critical factors. Understanding these differences ensures the right cable type is selected for optimal performance and cost-effectiveness in any given application.

Cable assemblies and electrical contract manufacturing companies in Chennai offer high-quality customized services based on the client’s requirements.

Frequently Asked Questions(FAQs)

How do I decide between solid copper and copper clad cables?

Consider the amount of data you need to transmit and the length of the cable required. Solid copper is best for high data volumes and longer distances, while copper clad can handle smaller data loads efficiently.

What considerations should I keep in mind for the installation and termination of these cables?

Solid Copper Cables: These cables are easier to terminate securely due to their rigidity and consistent conductivity. However, they need careful handling to avoid damage.

Copper Clad Cables: Specific techniques are required to ensure proper termination and avoid issues like galvanic corrosion, especially where the copper coating is thinner. Proper tools and connectors should be used for these cables.

Can I use copper clad cables for long-distance data transmission?

Copper clad cables can be used for longer distances if the data load is relatively small. For high data volumes over long distances, solid copper cables are recommended.

Which type of cable is more durable for demanding conditions?

Steel copper clad cables offer excellent durability, making them suitable for demanding conditions. Solid copper cables are also highly durable and perform well in demanding environments. In contrast, copper clad aluminum is less robust and not ideal for harsh conditions.
